Vanguard Internal Flagpole Truck

Cast aluminum construction for use on rope style internal halyard flagpoles. A small pulley assembly is added to the inside of a standard outrigger style truck to allow the halyard to feed from inside the flagpole. The pulley assembly has a 17/16” outside diameter cast nylon pulley on a 1/4” stainless steel axle and is held in place inside the truck by a 5/16”-18NC stainless steel set screw. The truck has a 2” outside diameter cast nylon pulley on a 1/4” stainless steel axle and is designedto slip over the top of the flagpole and be secured with three 5/16”-18NC stainless steel set screws. The top of the truck will accept an ornament with 1/2”-13NC threading as standard but can be supplied with other sizes of threading. The ornament is held in place by a size 10-32 stainless steel pan head screw. Maximum rope diameter is 5/16”.

Model Fits Pole Diameter Sliver Bronze #313 White Black
IH13 3" $59 $66 $65 $64
IHT135 3.5" $69 $80 $79 $78

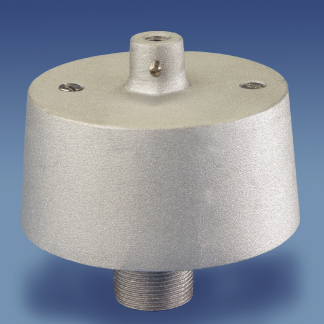

IHTVS Series Internal Flagpole Truck

Cast aluminum construction for use on rope style internal halyard flagpoles. A small pulley assembly is affixed to the inside of the truck housing to allow the halyard to feed from inside the flagpole. The pulley assembly has a 17/16” outside diameter cast nylon pulley on a 1/4” stainless steel axle. This truck is designed to be used on flagpoles that have up to a 31/2” outside top diameter with female fitting installed. The bottom of the spindle has a 11/4” NPT threading and is screwed into the top of the flagpole. The top of the truck will accept an ornament with 1/2”-13NC threading as standard but can be supplied with other sizes of threading. The ornament is secured to the truck with a 1/4”-20NC stainless steel set screw. Maximum rope diameter is 5/16”.

Model Max Pole Top Diameter Sliver Bronze #313 White Black
IHTVS 3.5" $73 $80 $81 $82

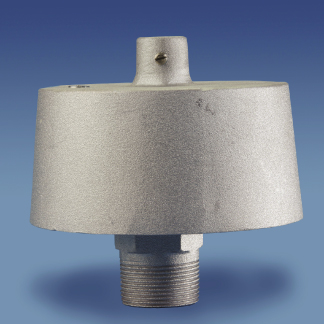

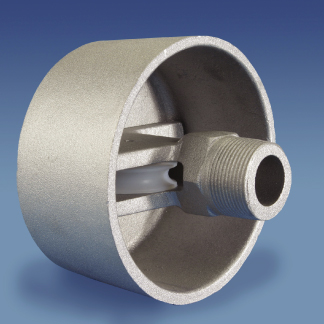

IH-2 Series Internal Flagpole Truck

All of these cast aluminum trucks have a 11/4” NPT threaded spindle which screws into the top of the flagpole where a female fitting has been installed. The top of all trucks are designed to accept an ornament with a spindle threading of 1/2”-13NC as standard but can be supplied in other sizes of threading. The ornament is secured to the truck with a 1/4”-20NC stainless steel set screw. The extra large model has stainless steel sealed lubricant bearing assemblies while all other sizes utilize stainless steel ball bearings in both upper & lower bearing races. All sizes are supplied with a stainless steel bushing at the cable exit point except the IHT-3 which has a bronze fitting.



Model Truck Base Dia Max Pole Top Diameter Truck Ht Sliver Bronze #313 White Black
IHTVR 5" 3" 4.5" $168 $189 $184 $184
IHT1 6.5" 4" 6.5" 252 273 263 263
IHT2 8" 5" 7.25" 292 329 319 329
IHT3 10.5" 7.5" 8.5" 588 651 586 651



Cam Action Cleats

Used in rope style internal halyard flagpoles. The mounted version is secured onto a 1 1/2” x 3 3/8” aluminum block with two #10-32NC stainless steel pan head screws. Both versions are supplied with two #10-32NC stainless steel mounting screws. Recommended maximum rope diameter is 5/16”.

Size: The unmounted cleat is about 2.5" tall, about 1.25" wide. The bolt holes are about 2.5" apart on center.

Item # Description Distance Between Bolt Centers Price
CAMTD Mounted 2 15/16" $32.00
CAMUN UnMounted 2" $19.00


Beaded retainter rings for internal and large external flagpoles







INTERNAL HALYARD DOOR & FRAME UNITS

This unit is designed for 5” diameter poles and is used with rope style internal halyard systems. Each unit consists of a hinged door mounted to the front of the frame and a cam cleat (optional) mounted to the back of the frame.

The entire unit is inserted into the flagpole shaft and secured with ten 1/4”-20NC stainless steel screws. Minimum hole opening 51/2” x 31/4”. Lock & keys included. Standard stock colors are Silver, Bronze #313, White, Black and painted to match Clear Anodizing. Please specify color when ordering.


Description Silver Clear Anodized Bronze #313 White Black
With Cam Cleat #IHDS $136 #IHDCL $147 #IHDB $149 #IHDW $148 #IHDBL $149
No Cam Cleat #IHDSN $111 #IHDCLN $121 #IHDBN $122 #IHDWN $123 #IHDBLN $124

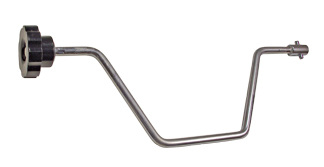

Winch Handle for stainless steel winches

#WH1 $39.00

"M" Winch Handle for "M" Winch model #M-5

#MH-5 $49.00

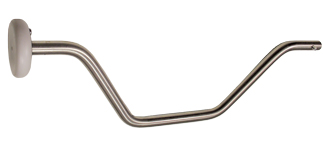

"M" Winch Handle for "M" Winch models #M-6 thru M-14

#MH-612 $95.00

STAINLESS STEEL WINCHES

These winches are available for use on flagpoles with a butt diameter of 6” or larger. These gearless winches utilize cast bronze internal brakes which release when a winch handle is inserted and rotational pressure is applied. The winch is locked at any position by removing the handle which engages the brake system. The small size is generally used on flagpoles up to 45’, the large size is used on flagpoles from 50’ thru 80’ and the X-Large size is used on flagpoles higher than 80’. The winch is mounted to the inside of the flagpole with two 5/16”-18NC stainless steel bolts with mounting centers being 3 1/2”. Recommended diameters of stainless steel cable are 1/8” or 5/32”.

  Minimum Pole Opening
Model Size Height Width Drum Width Price
SSW1 Small 3 1/8" 4 1/8" 1.5" $412
SSW2 Large 3 5/8" 4 1/8 2" $419
SSW3 X-Large 6 5/8" 4 1/8 5" $706

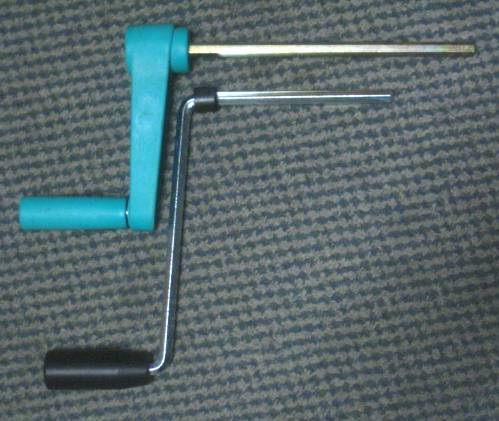

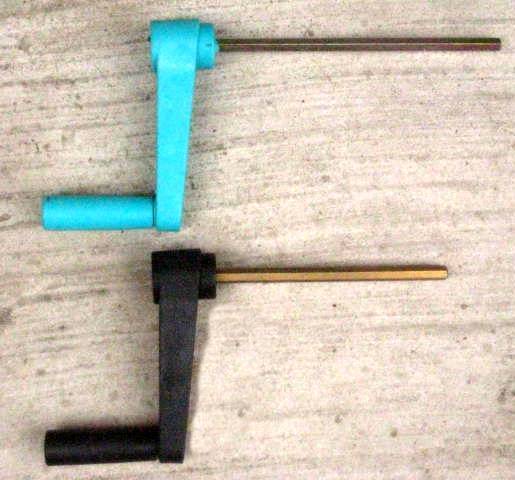

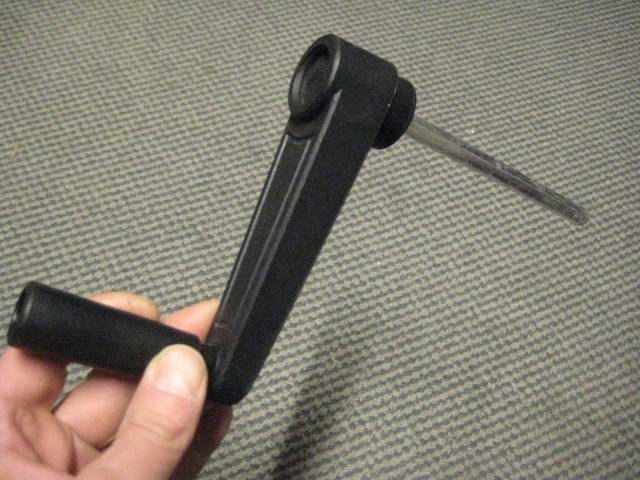

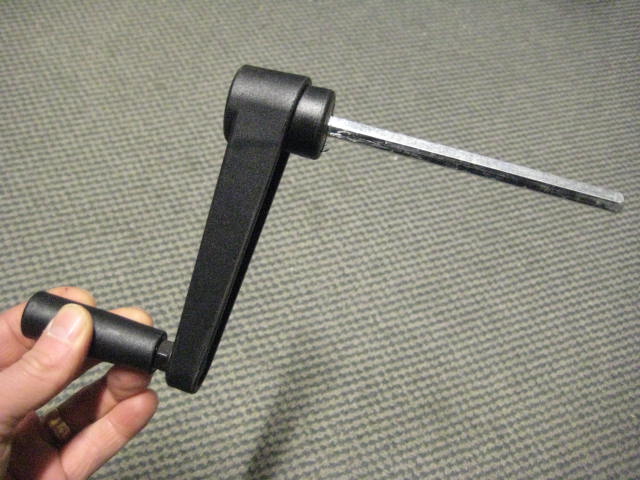

Crank for Atlantic Fiberglass Flag Pole Internal Halyard System $49.00



#CW35



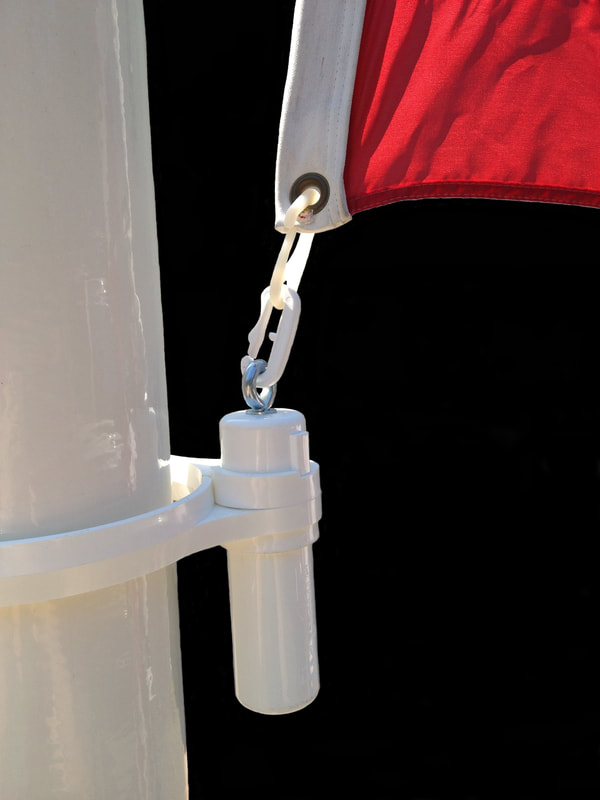

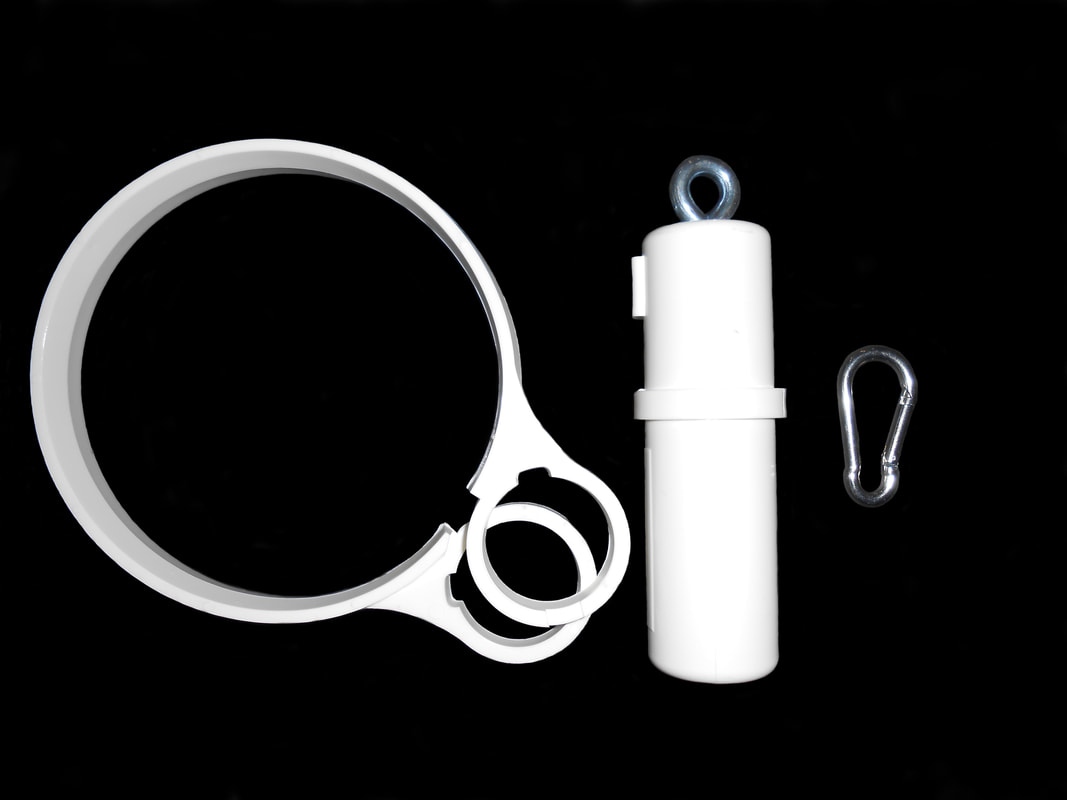

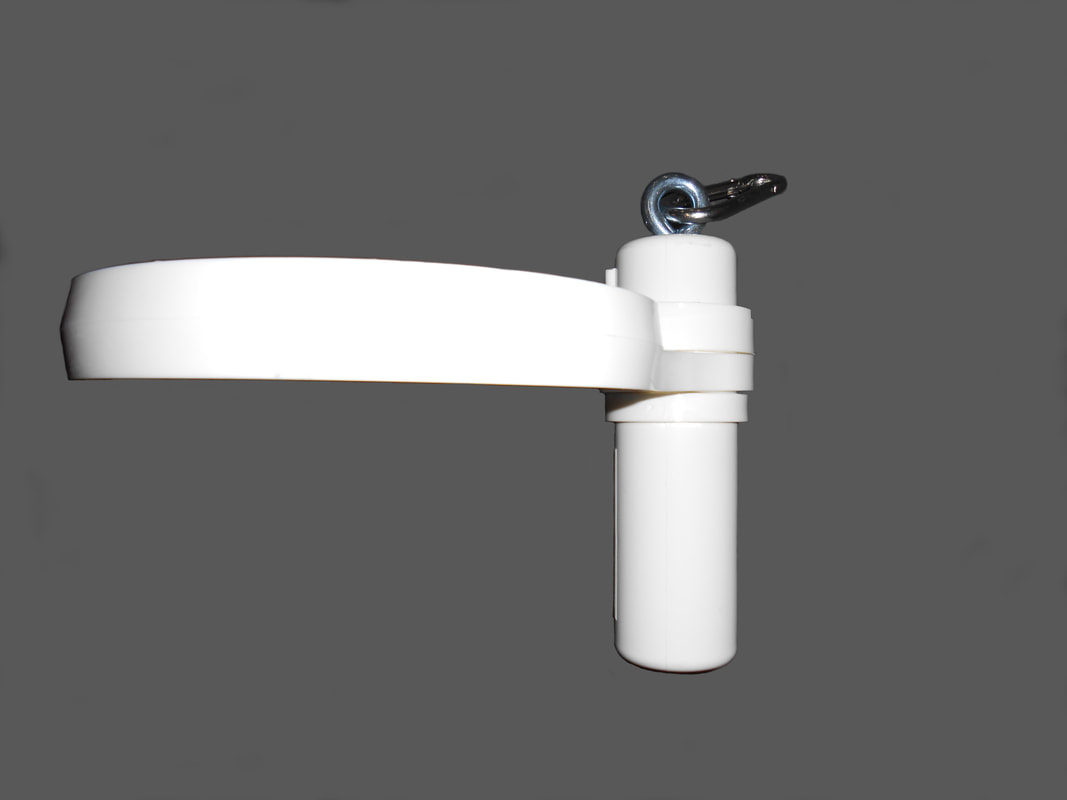

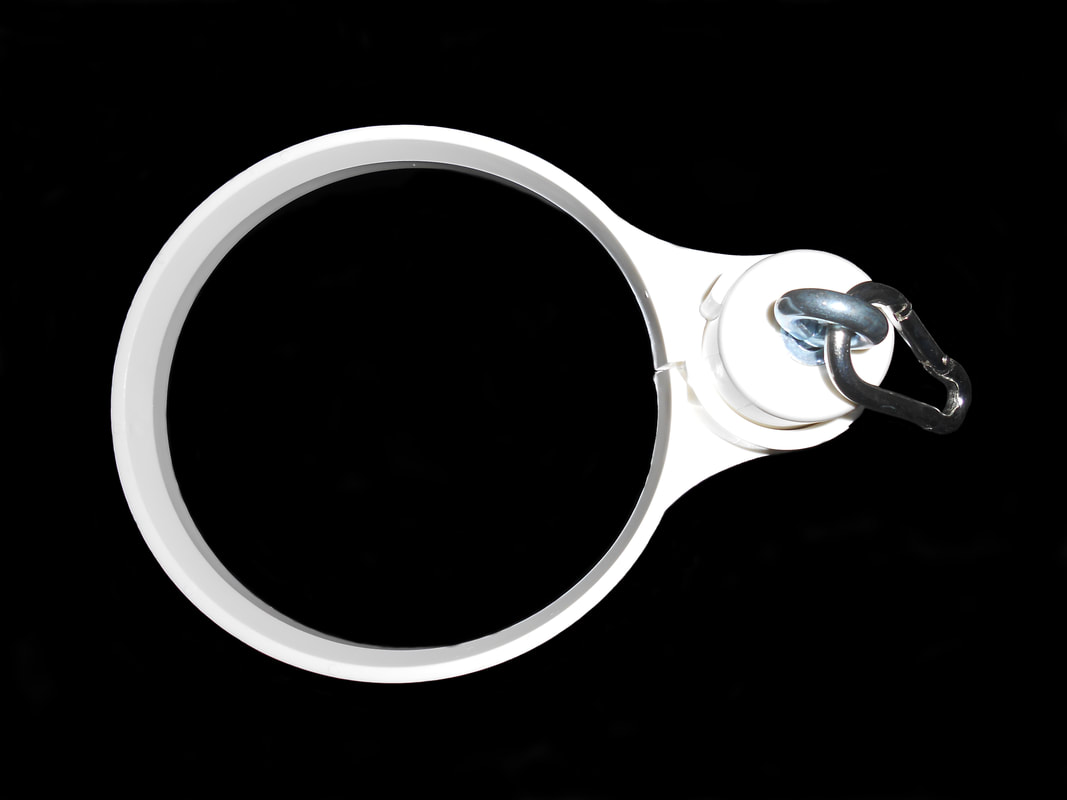

COUNTERWEIGHTS

Fabricated from 2” diameter steel and then coated with plastisol. The 3 1/2” pound weights are supplied with one eyebolt attached to one end while the 7 pound and 14 pound weights are supplied with an eyebolt attached to each end.



#CW7 & #CW14
Model Length Weight in Lbs White Silver Bronze #313
#CW35 3.5" 3.5 $36 $37 $38
#CW7 7" 7 48 49 50
#CW14 14" 14 62 63 64
