Sectional Aluminum Flagpoles  Budget Aluminum Flagpoles  Alloy 6063 Aluminum Yard Pole   Big Fat Aluminum Flagpole Series

Atlas Series

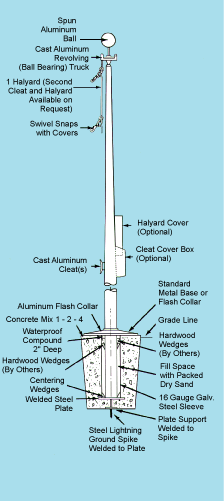

Ground Set Cone Tapered External Halyard System Commercial Aluminum Flagpoles

Gold anodized aluminum ball ornament.

Cast aluminum revolving truck with pulley (ECSA20 & ECSA25 poles have a stationary truck as standard.)

Solid braided polypropylene halyard.

Swivel flag snaps w/ vinyl snap covers.

Cast aluminum cleat with mounting screws.

Spun aluminum flash collar.

Galvanized steel foundation sleeve.

Add $30 to any flagpole in this series for double cleat and double halyard

Use extreme caution when lifting poles, especially near power lines & on windy days. Check for buried utilities and private services before digging. Touching a power line with a pole is a terrible idea and can cause injury or death! Even if a pole isn't heavy, there is leverage working against you. Use a crane or bucket-truck if need be.

Wind Speeds:

Flag sizes do not constitute a warranty that flags of the size shown may be safely flown in all winds. Remember that wind gusts can be greater than a storm's prevailing winds.
Flying greater flag loads or flying them in higher winds than rated may result in damage to the pole. Flags should be removed from any pole long before winds reach the wind speeds shown. SCROLL DOWN FOR IMPORTANT WIND CHART AND SAFETY INFORMATION

Freight costs are additional and need to be quoted based on your zip code and delivery details. These can not ship UPS. They get delivered by common carrier.

Model Price With Satin Finish Price With Clear Anodized Finish Price With Bronze Anodized Finish Exposed Height Overall Length Butt DIA. Top DIA. Wall Max Unflagged Wind Speed Max Flagged Wind Speed Max Suggested Flag Size
ECSA20 $790 $990 $1,050 20' 22' 4" 2 3/8" .125 152 MPH 110 MPH 3'x5'
ECSA25 $850 $1,060 $1,100 25' 27' 4" 2 3/8" .125 113 MPH 88 MPH 4'x6'
ECXA25 $1,440 $1,690 $1,780 25' 27' 5" 3" .156 183 MPH 120 MPH 4'x6'
ECXA30 $1,590 $1,870 $1,990 30' 33' 5" 3" .156 119 MPH 95 MPH 5'x8'
ECA30 $1,970 $2,330 $2,390 30' 33' 6" 3 1/2" .156 184 MPH 115 MPH 5'x8'
ECSA35 $1,790 $2,160 $2,190 35' 38 1/2' 5" 3" .188 104 MPH 86 MPH 5'x8'
ECA35 $2,370 $2,860 $2,890 35' 38 1/2' 7" 3 1/2" .156 175 MPH 114 MPH 6'x10'
ECA40 $3,440 $3,950 $4,090 40' 44' 8" 3 1/2" .156 171 MPH 110 MPH 8'x12'
ECXA60 $7,790 $8,990 $9,240 60' 60' 10" 4" .250 150 MPH 106 MPH 12'x18'

Wind Chart

The map below shows the maximum steady wind expected at an elevation of thirty feet above ground level within a fifty year period of recurrence. Areas with the same maximum constant or steady wind speed are indicated. Because wind speeds are usually not constant, and gusts are involved, flagpoles (both flagged and unflagged) are listed with a constant wind speed and a 1.3 gust factor. "Warning" - recommended flag sizes throughout this site do not represent a warranty that the flag size shown may be safely flown in all wind speeds. Personal injury, flagpole damage or property damage can occur when flying oversized flags and banners or flying flags in higher winds than recommended. Flagpoles and their associated wind speeds listed assume that ten percent of the overall length of the flagpole is buried per our recommendations at ground level. Special engineering may be required for other applications such as wall or roof mounted flagpoles. Consult an engineer or architect.



Design of safe flagpoles requires knowledge of the loads to which they will be subjected. Principal load acting on flagpoles is wind load and that load must be carefully determined. Maximum wind speeds to which flagpoles are exposed depend on geographical location, whether or not it is in the center of a large city, a small town's outskirts, seashore, at ground level or on the roof of a high building. Wind speeds are generally higher along coastal areas than inland. They are also higher in open country than in the center of cities. Wind speed also becomes greater as height above ground increases. Wind exerts a force on the pole as well as the flag, thus both loads must be added to determine total load. Flags of different sizes are designed to be flown from different poles. Obviously, it is important that flagpoles be selected which are capable of supporting the largest flag intended to be flown in the highest wind speed to which it will be subjected. Loads on flagpoles are resisted by the mounting foundation, roof or wall to which it is secured.



General Information Ground Set Cone Tapered Aluminum Flagpoles

         Our cone tapered ground set aluminum flagpoles are precision fabricated from new, 6063-T6 tubing utilizing the industry's most sophisticated, state-of-the-art manufacturing processes. the conical portion tapers approximately 1" in every 5 1/2 feet. poles with overall lengths of less than 38' 6" are shipped in one piece. longer lengths are shipped in sections and will be factory fitted with a self-aligning sleeve which requires no field welding. Upon proper assembly a hair-line joint will occur.

         All poles are double spiral wrapped with protective paper and shipped in a hard fiber tube. "Warning" - The flagpole shaft will stain if allowed to remain in contact with wet or damp wrappings. If there is any sign that the shaft or its shipping tube has come in contact with water during shipment, remove it from the tube and unwrap immediately. If the shaft is to be stored outdoors, it must be stored unwrapped, and off the ground. if the shaft is to be stored indoors, it may be left in the wrappings and tube, provided that it shows no sign of having been exposed to moisture, and that it will not be exposed to moisture during storage.

     All foundation dimensions listed in the instructions are intended for general guidelines only in good, firm, dry soil. It is recommended to consult and engineer for specific foundation dimensions suited to your exact location. "Warning" - Extreme care must be exercised when installing flagpoles near overhead power lines or when digging in the vicinity of buried cable or piping. contact your local authorities before any digging.

Standard Finishes

All flagpole shafts are highly polished with fine grain aluminum oxide cloth resulting in a high quality, deep satin lustre finish. This finish represents the ultimate in architectural finishes for aluminum flagpoles. The elegant, soft sheen remains maintenance free. In addition to satin, the following anodized finishes are available as standard colors: clear, light bronze #311, medium bronze #312, dark bronze #313 and black #335. Note: Of the three bronze finishes, dark bronze #313 is supplied unless otherwise specified.
